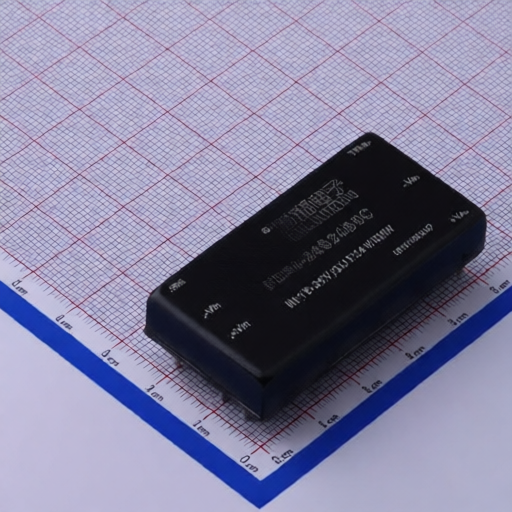

AIPULNION FD50-24S24B3C
Manufacturer:
AIPULNION
Asian Brands
Mfr. Part #:
FD50-24S24B3C
Package:
Through Hole
Customer #:
Key Attributes:
50W DC-DC modular power supply, 2:1 wide-range input voltage, ultra-fast startup, isolated and regulated output
Description:
Isolated Module DC DC Converter 1 Output 24V 2.08A 18V~36V Input
Datasheet:
AIPULNION FD50-24S24B3C
Products Specifications
Manufacturer:
Package:
Through Hole
Height:
9.5mm
Vin:
18V~36V
Vout:
24V
Operating Temperature:
-40℃~+85℃
Capacitive Load(Max):
500uF
Number of Outputs:
1
Ripple:
100mVp-p
Length:
50.8mm
Iout:
2.08A
Width:
25.4mm
Frequency - Switching:
350kHz
Quiescent Supply Current:
2mA
Isolation Voltage(Vrms):
1.5kV
Conversion Efficiency:
90%
Output Power:
50W
Features:
Short Circuit Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 17 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
