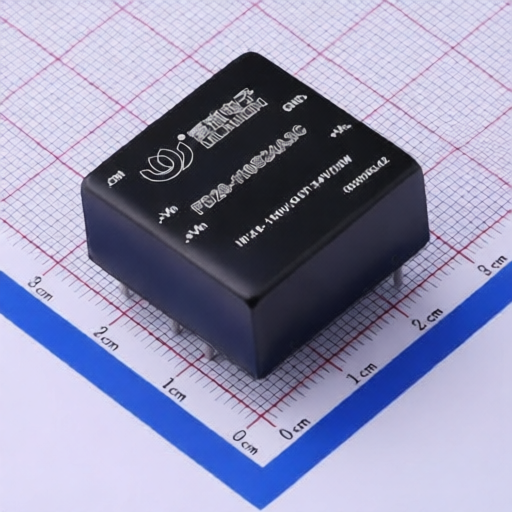

AIPULNION FD20-110S24A3C
Manufacturer:
AIPULNION
Asian Brands
Mfr. Part #:
FD20-110S24A3C
Package:
DIP,25.4x25.4mm
Customer #:
Key Attributes:
DC/DC modular power supply, wide-range input, 20W output power
Description:
Isolated Module DC DC Converter Buck 1 Output 24V 833mA 40V~160V Input
Datasheet:
AIPULNION FD20-110S24A3C
Products Specifications
Manufacturer:
Package:
DIP,25.4x25.4mm
Height:
12.5mm
Vin:
40V~160V
Vout:
24V
Operating Temperature:
-40℃~+85℃
Capacitive Load(Max):
500uF
Number of Outputs:
1
Ripple:
50mVp-p
Length:
25.4mm
Iout:
833mA
Width:
25.4mm
Frequency - Switching:
250kHz
Isolation Voltage(Vrms):
1.5kV
Conversion Efficiency:
89%
Output Power:
20W
Features:
Under Voltage Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AIPULNION
482 Products
Aipu Electronic Technology (Guangzhou) Co., Ltd.
(hereinafter referred to as “AIPUPOWER,” it was called “AIPULNION” in the past) was established in 2004. It is a high-tech enterprise in China specializing in the design, development, manufacturing, sales, and service of AC/DC and DC/DC high-frequency module power supplies. With over 20 years of industry experience, AIPUPOWER offers a broad range of power supply products. These products are known for their high power density, reliability, efficiency, anti-interference, and low ripple noise. AIPUPOWER also provides customized solutions tailored to specific customer requirements. Focusing on modular technology and high-power density design, the company strives to deliver maximum value through continuous innovation. Its products are widely used in photovoltaic power generation systems, rail transit, energy storage, electricity, ships, communications, industrial control, smart homes, the Internet of Things, charging stations, security, and o
