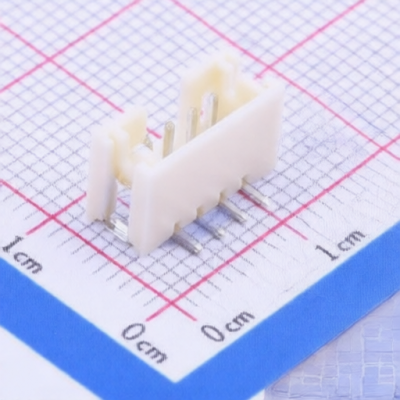

JST B4B-PH-SM4-TB(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
B4B-PH-SM4-TB(LF)(SN)
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 2mm
Description:
Connector Header 4 position 2mm Pitch 2A Surface Mount,Vertical -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Reference Series:
PH
Contact Material:
Copper alloy
Color:
Beige
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Supplementary Features:
Auxiliary Solder Pin
Mounting Type:
Surface Mount,Vertical
Number of PINs:
4P
Operating Temperature:
-25℃~+85℃
Plastic Material:
PA
Pitch:
2mm
Number of PINs Per Row:
4
Contact Plating:
Tin
Current Rating:
2A
X-Length of Bottom Edge on Board (Spacing Line):
11.95mm
Voltage Rating (Max):
100V
Row Spacing:
-
Pin Structure:
1x4P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
