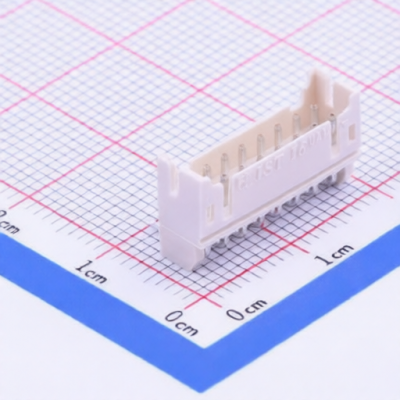

JST S16B-PHDSS(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
S16B-PHDSS(LF)(SN)
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 16POS 2mm
Description:
Connector Header 16 position 2mm Pitch 3A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Reference Series:
PHD
Contact Material:
Copper alloy
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Right Angle
Operating Temperature:
-25℃~+85℃
Number of PINs:
16P
Plastic Material:
Glass-Fiber Reinforced PA66
Pitch:
2mm
Number of PINs Per Row:
8
Contact Plating:
Tin
Current Rating:
3A
Voltage Rating (Max):
250V
X-Length of Bottom Edge on Board (Spacing Line):
17.9mm
Row Spacing:
2mm
Pin Structure:
2x8P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 250 |
| Sales Unit | Piece |
