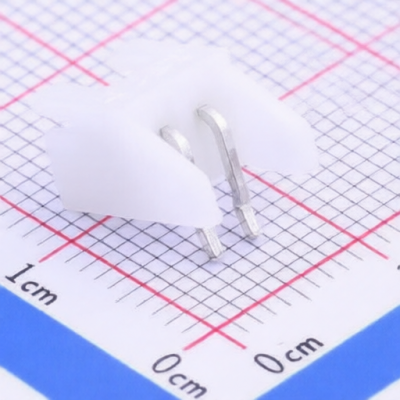

JST S2B-XH-A-1(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
S2B-XH-A-1(LF)(SN)
Package:
Through Hole,Right Angle,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 2POS 2.5mm
Description:
Connector Header 2 position 2.5mm Pitch 3A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.5mm
Reference Series:
XH
Contact Material:
Brass
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Supplementary Features:
K Pin
Mounting Type:
Right Angle
Operating Temperature:
-25℃~+85℃
Number of PINs:
2P
Plastic Material:
PA66
Pitch:
2.5mm
Number of PINs Per Row:
2
Contact Plating:
Tin
Current Rating:
3A
Voltage Rating (Max):
250V
X-Length of Bottom Edge on Board (Spacing Line):
7.4mm
Row Spacing:
-
Pin Structure:
1x2P
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
