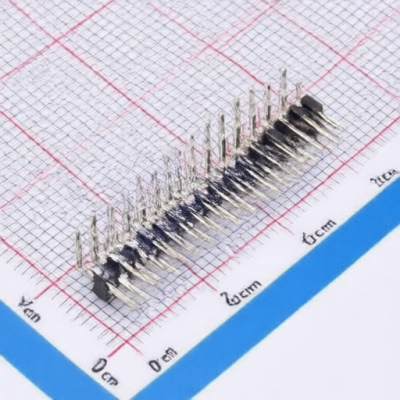

Hong Cheng HC-PZ200-10.5L-2x15PWA
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-PZ200-10.5L-2x15PWA
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER 30POS 2mm DUAL ROW TH R/A
Description:
Pin Header 30 Position 2mm Pitch Dual Row -40℃~+105℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Contact Material:
Brass
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Number of Rows:
2
Insulation Height:
4mm
Length of Mating Pin:
4mm
Operating Temperature:
-40℃~+105℃
Number of PINs:
30P
Length of End Connection Pin:
2.8mm
Pitch:
2mm
Current Rating:
1.5A
Contact Plating:
Gold
Voltage Rating (Max):
-
Pin Structure:
2x15P
Row Spacing:
2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
