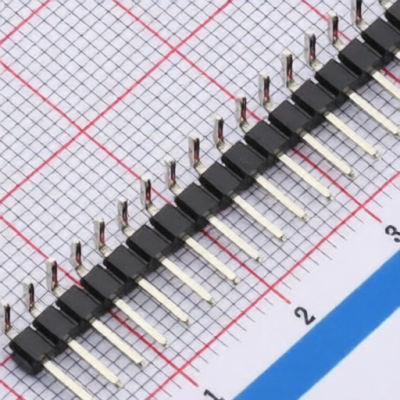

Hong Cheng HC-PZ254-13.8L-1x20PWA
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-PZ254-13.8L-1x20PWA
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 20POS 2.54mm SINGLE ROW TH R/A
Description:
Pin Header 20 Position 2.54mm Pitch Single Row -40℃~+105℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Contact Material:
Brass
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Number of Rows:
1
Mounting Type:
Right Angle
Insulation Height:
2.5mm
Length of Mating Pin:
6mm
Number of PINs:
20P
Operating Temperature:
-40℃~+105℃
Length of End Connection Pin:
3mm
Pitch:
2.54mm
Contact Plating:
Gold
Current Rating:
3A
Voltage Rating (Max):
-
Row Spacing:
-
Pin Structure:
1x20P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 300 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hong Cheng
1228 Products
Shenzhen Hongcheng Electronics Co., Ltd.
(hereinafter referred to as "Hong Cheng") is a technology-based company integrating R&D, production and sales. The company's main products are 0.8/1.0/1.25/1.5/2.0/2.54/3.96 pitch pin headers, USB sockets, HDMI, network sockets, headphone sockets, VGA sockets, lamp holders and other products, which are widely used in smart home, automobile, consumer electronics and other fields. HongCheng has independent product R&D and design capabilities and mold manufacturing and processing capabilities. It can design and produce various complex plastic products and precision molding molds according to customer requirements. At the same time, HongCheng has a complete quality inspection system to ensure that customers receive assured and satisfactory products.
