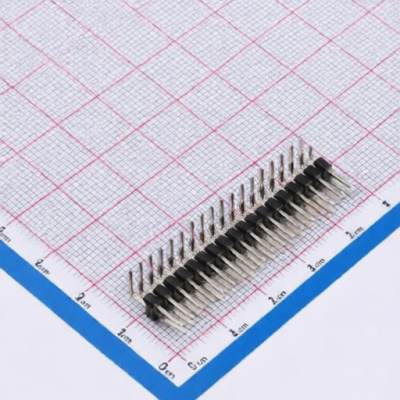

Hong Cheng HC-PZ254-13.8L-2x18PWA
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-PZ254-13.8L-2x18PWA
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 36POS 2.54mm DUAL ROW TH R/A
Description:
Pin Header 36 Position 2.54mm Pitch Dual Row -40℃~+105℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Contact Material:
Brass
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Number of Rows:
2
Insulation Height:
5.04mm
Length of Mating Pin:
6mm
Number of PINs:
36P
Operating Temperature:
-40℃~+105℃
Length of End Connection Pin:
3mm
Pitch:
2.54mm
Contact Plating:
Gold
Current Rating:
3A
Voltage Rating (Max):
-
Pin Structure:
2x18P
Row Spacing:
2.54mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
