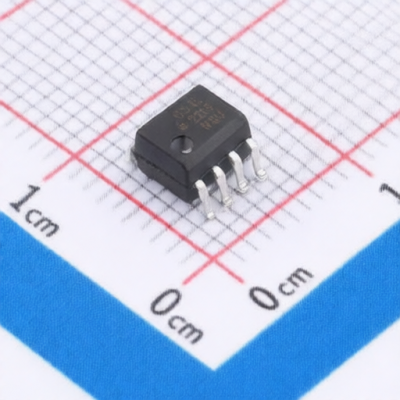

Broadcom ACPL-054L-000E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-054L-000E
Package:
SOIC-8
Customer #:
Description:
16mA 1Mbit/s 2.7V~24V 1.5V DC SOIC-8 Transistor, Photovoltaic Output Optoisolators RoHS
Products Specifications
Manufacturer:
Package:
SOIC-8
Output Current:
16mA
Data Rate:
1Mbit/s
Low Level Delay Time:
1.4us
High Level Delay Time:
1us
Voltage - Supply:
2.7V~24V
Current transfer ratio:
93%
Voltage - Forward(Vf):
1.5V
CMTI(kV/us):
15kV/us
Number of Channels:
2
Pd - Power Dissipation:
45mW
Operating Temperature:
-40℃~+105℃
Input threshold current:
10mA
Input type:
DC
Isolation Voltage(Vrms):
3.75kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
