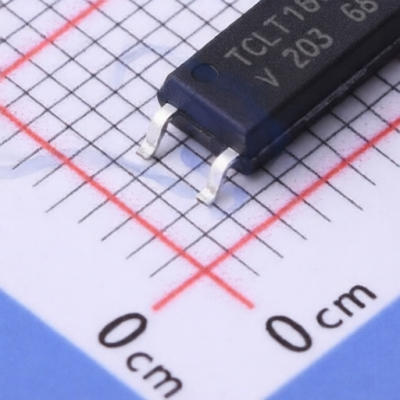

VISHAY TCLT1600
Manufacturer:
VISHAY
Mfr. Part #:
TCLT1600
Package:
SOP-4-2.54mm
Customer #:
Key Attributes:
Optocoupler, Phototransistor Output, AC Input, SOP-4L, Long Mini-Flat Package
Description:
50mA 300mV@1mA,10mA 70V 1.25V AC,DC SOP-4-2.54mm Transistor, Photovoltaic Output Optoisolators RoHS
Products Specifications
Manufacturer:
Package:
SOP-4-2.54mm
Output Type:
Phototransistor
Rise time:
3us@2mA,100Ω
Fall time:
4.7us
Output Current:
50mA
Vce Saturation(VCE(sat)):
300mV@1mA,10mA
Load Voltage:
70V
Reverse Voltage:
-
Current transfer ratio:
80%;300%
Voltage - Forward(Vf):
1.25V
Forward Current(If):
60mA
Number of Channels:
1
Operating Temperature:
-55℃~+100℃
Input type:
AC,DC
Isolation Voltage(Vrms):
5kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
