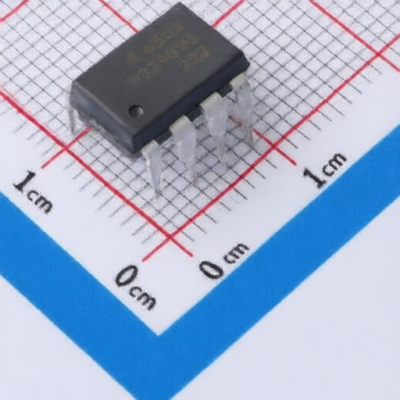

Broadcom HCPL-4502-000E
Manufacturer:
Broadcom
Mfr. Part #:
HCPL-4502-000E
Package:
PDIP-8
Customer #:
Key Attributes:
Single Channel, High Speed Optocouplers
Description:
8mA 1Mbit/s 5V 4.5V~5.5V 1.7V DC PDIP-8 Transistor, Photovoltaic Output Optoisolators RoHS
Products Specifications
Manufacturer:
Package:
PDIP-8
Output Current:
8mA
Data Rate:
1Mbit/s
Low Level Delay Time:
800ns
High Level Delay Time:
800ns
Reverse Voltage:
5V
Voltage - Supply:
4.5V~5.5V
Current transfer ratio:
15%
Voltage - Forward(Vf):
1.7V
Forward Current(If):
25mA
CMTI(kV/us):
1kV/us
Number of Channels:
1
Pd - Power Dissipation:
100mW
Operating Temperature:
-55℃~+100℃
Input threshold current:
-
Input type:
DC
Isolation Voltage(Vrms):
3.75kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
