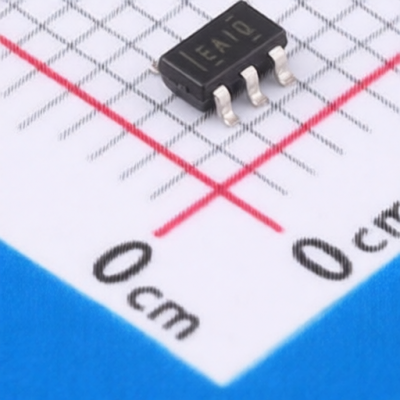

TI UCC27532QDBVRQ1
Manufacturer:
TI
Mfr. Part #:
UCC27532QDBVRQ1
Package:
SOT-23-6
Customer #:
Key Attributes:
2.5A and 5A, 35V Max VDD single gate drivers for Field-Effect Transistors (FETs) and Insulated Gate Bipolar Transistors (IGBTs)
Description:
Low Side Gate Driver IC MOSFET IGBT SOT-23-6
Products Specifications
Manufacturer:
Package:
SOT-23-6
Input Logic Level - Low:
6.7V~7.9V
Peak Output Current(Sink):
5A
Quiescent Current(Iq):
240uA
Voltage - Supply:
10V~32V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Low Side
Propagation Delay tpLH:
17ns
Propagation Delay tpHL:
17ns
Rise Time:
15ns
Features:
Under Voltage Protection
Current - Output High(IOH):
2.5A
Fall Time:
7ns
Load Type:
MOSFET;IGBT
Input Logic Level - High:
8.8V~10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
