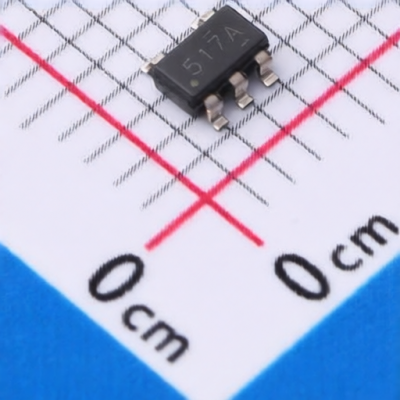

TI UCC27517ADBVT
Manufacturer:
TI
Mfr. Part #:
UCC27517ADBVT
Package:
SOT-23-5
Customer #:
Key Attributes:
UCC27517A Single-Channel High-Speed Low-Side Gate Driver (4A Peak Sink/Source Current, Supports Negative Input Voltage)
Description:
Low Side Gate Driver IC MOSFET IGBT SOT-23-5
Products Specifications
Manufacturer:
Package:
SOT-23-5
Input Logic Level - Low:
1V~1.2V
Peak Output Current(Sink):
4A
Quiescent Current(Iq):
100uA
Voltage - Supply:
4.5V~18V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Low Side
Propagation Delay tpLH:
13ns
Propagation Delay tpHL:
13ns
Rise Time:
8ns
Features:
Under Voltage Protection
Current - Output High(IOH):
4A
Fall Time:
7ns
Load Type:
MOSFET;IGBT
Input Logic Level - High:
2.2V~2.4V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 250 |
| Sales Unit | Piece |
