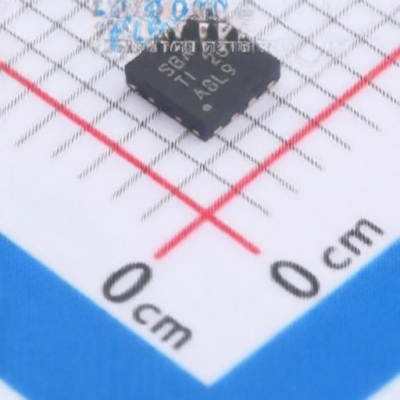

TI UCC27524DSDT
Manufacturer:
TI
Mfr. Part #:
UCC27524DSDT
Package:
SON-8(3x3)
Customer #:
Key Attributes:
Dual 5A high-speed low-side gate driver
Description:
Low Side Gate Driver IC MOSFET IGBT SON-8(3x3)
Products Specifications
Manufacturer:
Package:
SON-8(3x3)
Input Logic Level - Low:
1V~1.4V
Peak Output Current(Sink):
5A
Quiescent Current(Iq):
75uA
Voltage - Supply:
4.5V~18V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Low Side
Propagation Delay tpLH:
13ns
Propagation Delay tpHL:
13ns
Rise Time:
7ns
Features:
Under Voltage Protection
Fall Time:
6ns
Current - Output High(IOH):
5A
Load Type:
MOSFET;IGBT
Input Logic Level - High:
1.9V~2.3V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 250 |
| Sales Unit | Piece |
