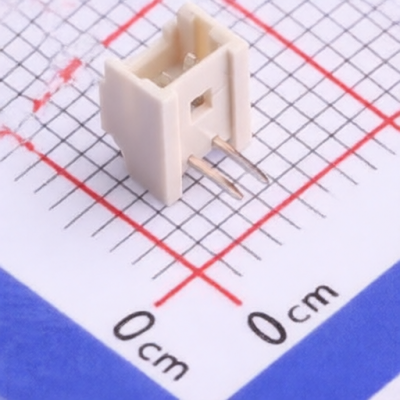

MOLEX 530480210
Manufacturer:
MOLEX
Mfr. Part #:
530480210
Package:
Through Hole,Right Angle,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 2POS 1.25mm
Description:
Connector Header 2 position 1.25mm Pitch 1A Right Angle -40℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1.25mm
Y-Width of Bottom Edge on Board:
5.5mm
Pins Structure:
1x2P
Reference Series:
PicoBlade(MX 1.25)
Contact Material:
Phosphor Bronze;PA
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Right Angle
Pitch:
1.25mm
Number of PINs:
2P
Operating Temperature:
-40℃~+85℃
Number of PINs Per Row:
2
Contact Plating:
Tin
Current Rating:
1A
X-Length of Bottom Edge on Board (Spacing Line):
4.25mm
Voltage Rating (Max):
125V
Z-Height of the Board:
3.5mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
