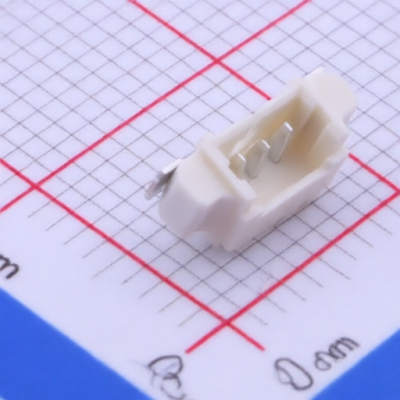

MOLEX 532610371
Manufacturer:
MOLEX
Mfr. Part #:
532610371
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Description:
Connector Header 3 position 1.25mm Pitch 1A Surface Mount, Right Angle -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5.2mm
Pins Structure:
1x3P
Reference Series:
PicoBlade(MX 1.25)
Contact Material:
Phosphor Bronze;Glass-Filled Polyamide
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Supplementary Features:
Auxiliary Solder Pin
Mounting Type:
Surface Mount, Right Angle
Pitch:
1.25mm
Operating Temperature:
-40℃~+105℃
Number of PINs:
3P
Number of PINs Per Row:
3
Current Rating:
1A
Contact Plating:
Tin
X-Length of Bottom Edge on Board (Spacing Line):
8.9mm
Voltage Rating (Max):
125V
Z-Height of the Board:
3.4mm
Row Spacing:
-
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
