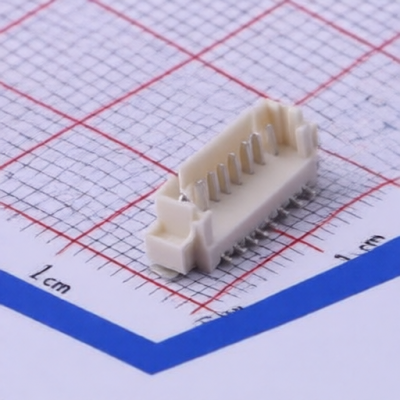

MOLEX 533980871
Manufacturer:
MOLEX
Mfr. Part #:
533980871
Package:
SMD,P=1.25mm
Customer #:
Description:
Connector Header 8 position 1.25mm Pitch 1A Surface Mount,Vertical -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.2mm
Reference Series:
PicoBlade(MX 1.25)
Pins Structure:
1x8P
Contact Material:
Phosphor Bronze;Glass-Filled Polyamide
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Supplementary Features:
Auxiliary Solder Pin
Mounting Type:
Surface Mount,Vertical
Pitch:
1.25mm
Number of PINs:
8P
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
8
Contact Plating:
Tin
Current Rating:
1A
X-Length of Bottom Edge on Board (Spacing Line):
15.15mm
Voltage Rating (Max):
125V
Z-Height of the Board:
4.7mm
Row Spacing:
-
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
