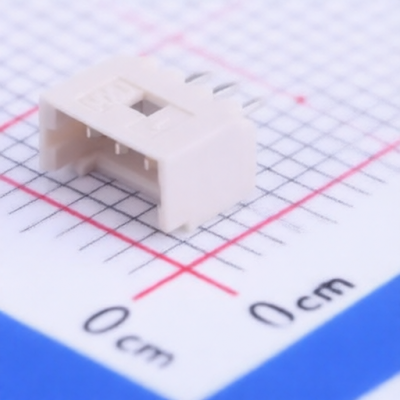

MOLEX 530470310

Name: MOLEX 530470310
Brand: MOLEX

Manufacturer: MOLEX

Mfr. Part #: 530470310

Package: Through Hole,P=1.25mm

Customer #:

Key Attributes: CONN HEADER TH 3POS 1.25mm

Description: Connector Header 3 position 1.25mm Pitch 1A Through Hole -40℃~+85℃

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

MOLEX

Package:

Through Hole,P=1.25mm

Y-Width of Bottom Edge on Board:

3.2mm

Pins Structure:

1x3P

Reference Series:

PicoBlade(MX 1.25)

Contact Material:

Phosphor Bronze;PA

Color:

White

Flame Retardant Rating:

UL94V-0

Number of Rows:

Mounting Type:

Through Hole

Pitch:

1.25mm

Operating Temperature:

-40℃~+85℃

Number of PINs:

Number of PINs Per Row:

Current Rating:

Contact Plating:

Tin

X-Length of Bottom Edge on Board (Spacing Line):

5.5mm

Voltage Rating (Max):

125V

Z-Height of the Board:

4.2mm

Row Spacing:

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece
