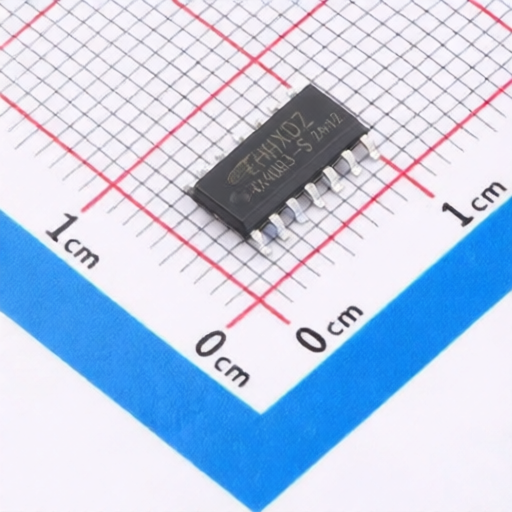

ZHHXDZ HX4093-S

Name: ZHHXDZ HX4093-S
Brand: ZHHXDZ

Manufacturer: ZHHXDZ Asian Brands

Mfr. Part #: HX4093-S

Package: SOP-14

Customer #:

Key Attributes: Quad 2-Input Schmitt NAND Gates

Description: NAND Gate IC 4 Channel Schmitt Trigger SOP-14

Datasheet: ZHHXDZ HX4093-S

Products Specifications

Category:

Integrated Circuits (ICs)/Logic/Gates and Inverters

Manufacturer:

ZHHXDZ

Package:

SOP-14

Operating Temperature:

-20℃~+85℃

Output Logic Level - Low:

0V~50mV

Output Logic Level - High:

4.95V~5V;9.95V~10V;14.95V~15V

Quiescent Current(Iq):

100nA

Propagation Delay:

210ns@5V,50pF;90ns@10V,50pF;110ns@15V,50pF

Voltage - Supply:

3V~15V

Current - Output High(IOH):

20mA

Number of Channels:

4;2

Current - Output Low(IOL):

22mA

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece
