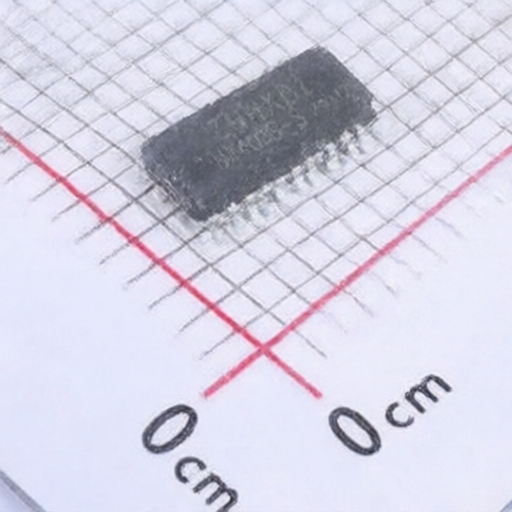

ZHHXDZ HX4069-S

Name: ZHHXDZ HX4069-S
Brand: ZHHXDZ

Manufacturer: ZHHXDZ Asian Brands

Mfr. Part #: HX4069-S

Package: SOP-14

Customer #:

Key Attributes: CMOS six-way inverter

Description: 1uA 3V~16V 6 SOP-14 Gates and Inverters RoHS

Datasheet: ZHHXDZ HX4069-S

Products Specifications

Category:

Integrated Circuits (ICs)/Logic/Gates and Inverters

Manufacturer:

ZHHXDZ

Package:

SOP-14

Input Logic Level - Low:

1V;2V;2.5V

Input Logic Level - High:

4V;8V;12.5V

Operating Temperature:

-20℃~+85℃

Output Logic Level - Low:

0V~50mV

Output Logic Level - High:

4.95V~5V;9.95V~10V;14.95V~15V

Quiescent Current(Iq):

1uA

Propagation Delay:

35ns@5V,50pF;22ns@10V,50pF;32ns@15V,50pF

Voltage - Supply:

3V~16V

Number of Circuits:

Current - Output High(IOH):

1.2mA

Current - Output Low(IOL):

2.2mA

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece
