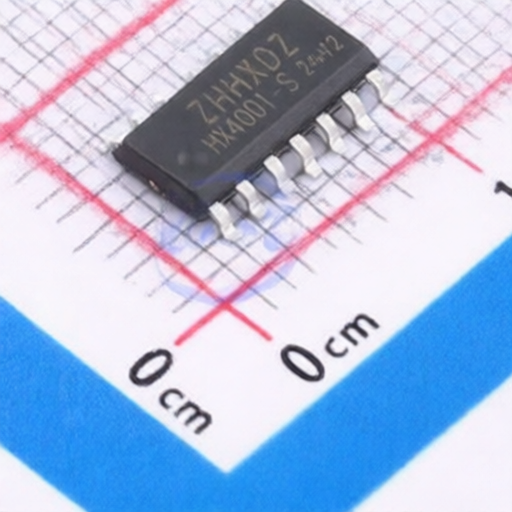

ZHHXDZ HX4001-S

Name: ZHHXDZ HX4001-S
Brand: ZHHXDZ

Manufacturer: ZHHXDZ Asian Brands

Mfr. Part #: HX4001-S

Package: SOP-14

Customer #:

Key Attributes: four-way 2-input or No gate

Description: 90ns@15V,50pF 1uA 3V~15V SOP-14 Gates and Inverters RoHS

Datasheet: ZHHXDZ HX4001-S

Products Specifications

Category:

Integrated Circuits (ICs)/Logic/Gates and Inverters

Manufacturer:

ZHHXDZ

Package:

SOP-14

Input Logic Level - High:

3.5V;7V;11V

Series:

HX4001

Input Logic Level - Low:

1.5V;3V;4V

Operating Temperature:

-20℃~+85℃

Output Logic Level - Low:

50mV

Output Logic Level - High:

4.95V~5V;9.95V~10V;14.95V~15V

Propagation Delay:

90ns@15V,50pF

Quiescent Current(Iq):

1uA

Voltage - Supply:

3V~15V

Current - Output High(IOH):

6.8mA

Number of Channels:

4;2

Current - Output Low(IOL):

6.8mA

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

ZHHXDZ

375 Products

Asian Brand

ZHHXDZ, abbreviated from Zhuhai Haixin Electronics Co., Ltd., is an innovative integrated circuit design company focusing on chip research and development. Its main product lines include automotive-grade Hall sensors, high-voltage isolation gate drivers, motor drivers, and interface chips.
