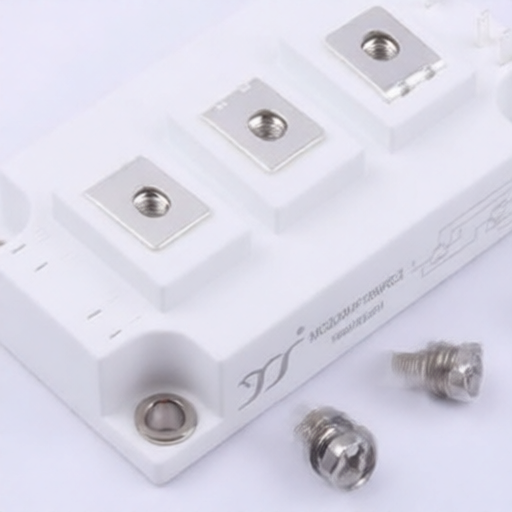

YANGJIE MG200HF12MRC2
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
MG200HF12MRC2
Package:
-
Customer #:
Description:
1.15kW 1.2kV IGBT Module Single IGBTs RoHS
Datasheet:
YANGJIE MG200HF12MRC2
Products Specifications
Manufacturer:
Package:
-
Pd - Power Dissipation:
1.15kW
Td(off):
490ns
Operating Temperature:
-40℃~+150℃@(Tj)
Td(on):
135ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
12.5nF@25V
IGBT Type:
IGBT Module
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6V@6mA
Gate Charge(Qg):
-
Reverse Recovery Time(trr):
230ns
Switching Energy(Eoff):
13.6mJ
Turn-On Energy (Eon):
17mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
