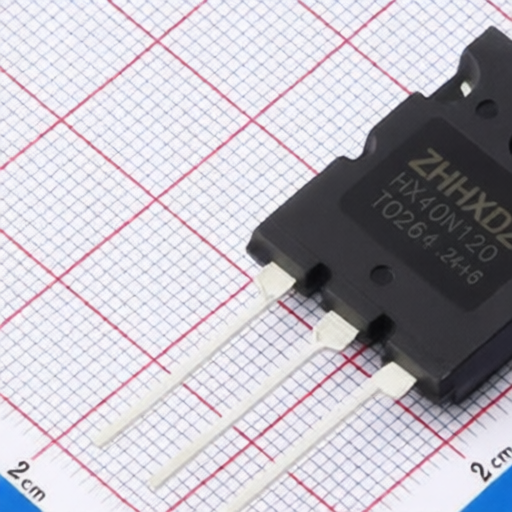

ZHHXDZ HX40N120-TO264
Manufacturer:
ZHHXDZ
Asian Brands
Mfr. Part #:
HX40N120-TO264
Package:
TO-264
Customer #:
Description:
500W 200V NPT (Non-Punch Through) TO-264 Single IGBTs RoHS
Datasheet:
ZHHXDZ HX40N120-TO264
Products Specifications
Manufacturer:
Package:
TO-264
Pd - Power Dissipation:
500W
Td(off):
110ns
Td(on):
15ns
Operating Temperature:
-55℃~+150℃
Collector-Emitter Breakdown Voltage (Vces):
200V
Reverse Transfer Capacitance (Cres):
125pF
IGBT Type:
NPT (Non-Punch Through)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@250uA
Gate Charge(Qg):
220nC@15V
Reverse Recovery Time(trr):
75ns
Switching Energy(Eoff):
1.1mJ
Turn-On Energy (Eon):
2.3mJ
Input Capacitance(Cies):
3.2nF
Pulsed Current- Forward(Ifm):
240A
Output Capacitance(Coes):
370pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ZHHXDZ
375 Products
ZHHXDZ, abbreviated from Zhuhai Haixin Electronics Co., Ltd., is an innovative integrated circuit design company focusing on chip research and development. Its main product lines include automotive-grade Hall sensors, high-voltage isolation gate drivers, motor drivers, and interface chips.
