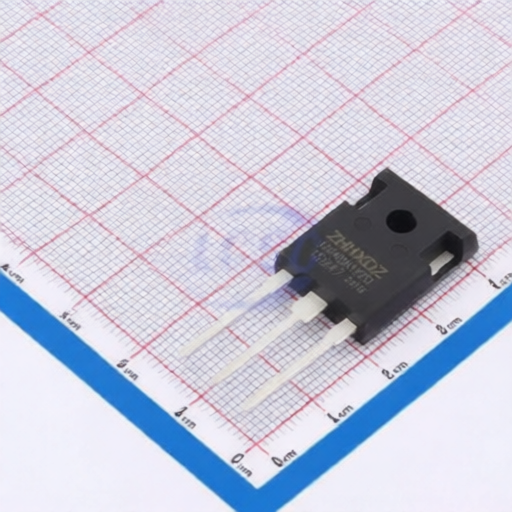

ZHHXDZ HX40N120-TO247
Manufacturer:
ZHHXDZ
Asian Brands
Mfr. Part #:
HX40N120-TO247
Package:
TO-247
Customer #:
Key Attributes:
1200V high speed switching series third generation
Description:
483W 1.2kV TO-247 Single IGBTs RoHS
Datasheet:
ZHHXDZ HX40N120-TO247
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
290ns
Pd - Power Dissipation:
483W
Td(on):
30ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
130pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Gate Charge(Qg):
185nC@15V
Reverse Recovery Time(trr):
355ns
Switching Energy(Eoff):
1.2mJ
Turn-On Energy (Eon):
3.2mJ
Input Capacitance(Cies):
2.33nF
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
185pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ZHHXDZ
375 Products
ZHHXDZ, abbreviated from Zhuhai Haixin Electronics Co., Ltd., is an innovative integrated circuit design company focusing on chip research and development. Its main product lines include automotive-grade Hall sensors, high-voltage isolation gate drivers, motor drivers, and interface chips.
