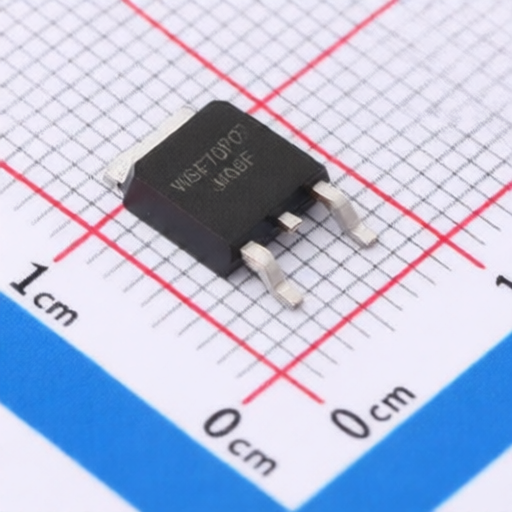

Winsok Semicon WSF70P02
Manufacturer:
Winsok Semicon
Asian Brands
Mfr. Part #:
WSF70P02
Package:
TO-252
Customer #:
Key Attributes:
MOSFET P-CH 20V 70A TO-252
Description:
P-Channel 20V 70A 80W Surface Mount TO-252
Datasheet:
Winsok Semicon WSF70P02
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
70A
Operating Temperature -:
-55℃~+150℃
RDS(on):
6.8mΩ@4.5V,15A
Gate Threshold Voltage (Vgs(th)):
400mV
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
445pF@10V
Number:
1 P-Channel
Output Capacitance(Coss):
520pF
Input Capacitance(Ciss):
5.783nF@10V
Pd - Power Dissipation:
80W
Gate Charge(Qg):
63nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
