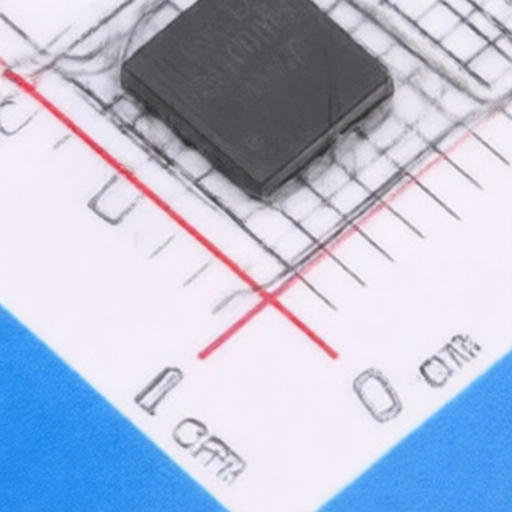

Winsok Semicon WSD2090DN56
Manufacturer:
Winsok Semicon
Asian Brands
Mfr. Part #:
WSD2090DN56
Package:
DFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 20V 80A DFN5x6-8
Description:
N-Channel 20V 80A 81W Surface Mount DFN5x6-8
Datasheet:
Winsok Semicon WSD2090DN56
Products Specifications
Manufacturer:
Package:
DFN5x6-8
Configuration:
-
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
80A
Operating Temperature -:
-55℃~+175℃
RDS(on):
6mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
446pF
Number:
1 N-channel
Output Capacitance(Coss):
460pF
Input Capacitance(Ciss):
3.2nF
Pd - Power Dissipation:
81W
Gate Charge(Qg):
11.05nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
