Wolfspeed C3M0350120J
Manufacturer:
Wolfspeed
Mfr. Part #:
C3M0350120J
Package:

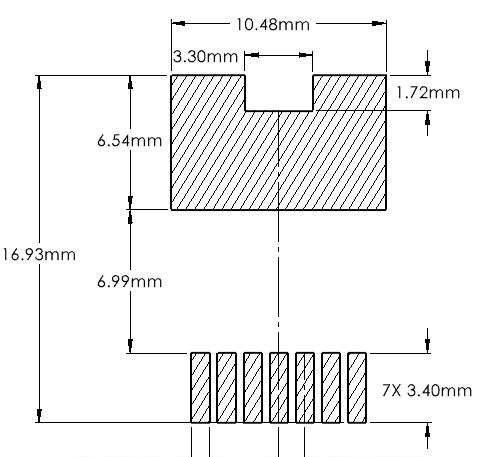

TO-263-7
Customer #:
Key Attributes:
Silicon Carbide Power MOSFET C3M MOSFET Technology N-Channel Enhancement Mode
Description:
1.2kV 7.2A 455mΩ 3.6V 40.8W TO-263-7 Single FETs, MOSFETs RoHS
Datasheet:
Wolfspeed C3M0350120J
Products Specifications
Manufacturer:
Package:
TO-263-7
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
7.2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
455mΩ
Gate Threshold Voltage (Vgs(th)):
3.6V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
3.4pF
Pd - Power Dissipation:
40.8W
Input Capacitance(Ciss):
345pF
Output Capacitance(Coss):
20pF
Gate Charge(Qg):
13nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Wolfspeed
738 Products
Wolfspeed was founded in 1987 as the power and RF division of Cree and officially rebranded to Wolfspeed in 2021. The company focuses on silicon carbide (SiC) and gallium nitride (GaN) technologies, primarily producing wide bandgap semiconductor materials, power devices, and RF devices.
