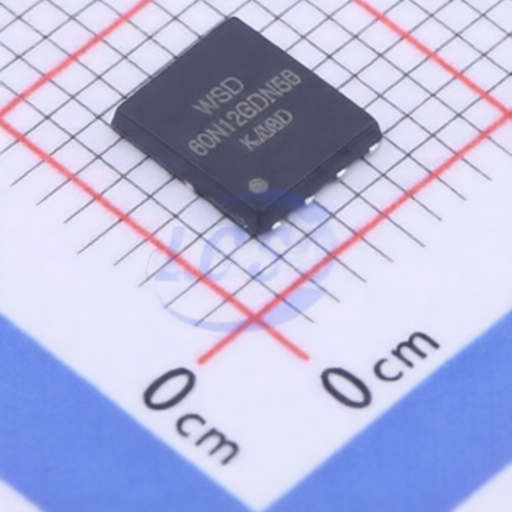

Winsok Semicon WSD60N12GDN56
Manufacturer:
Winsok Semicon
Asian Brands
Mfr. Part #:
WSD60N12GDN56
Package:
DFN(5x6)
Customer #:
Key Attributes:
N-Channel, Current:70A, Voltage:120V
Description:
120V 70A 25mΩ@4.5V 2.5V@250uA 140W DFN(5x6) Single FETs, MOSFETs RoHS
Datasheet:
Winsok Semicon WSD60N12GDN56
Products Specifications
Manufacturer:
Package:
DFN(5x6)
Drain to Source Voltage:
120V
Current - Continuous Drain(Id):
70A
RDS(on):
25mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
11pF
Output Capacitance(Coss):
330pF
Pd - Power Dissipation:
140W
Input Capacitance(Ciss):
2.64nF
Gate Charge(Qg):
33nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
