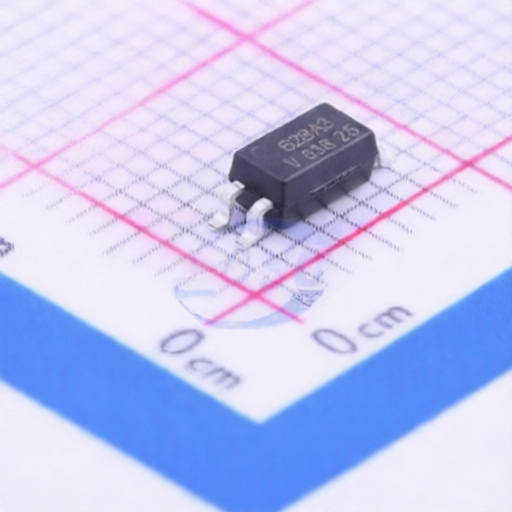

VISHAY VOS628A-3T
Manufacturer:
VISHAY
Mfr. Part #:
VOS628A-3T
Package:
SOIC-4-175mil
Customer #:
Key Attributes:
Optocoupler, Phototransistor Output, AC Input, Low Input Current, SSOP-4, Half Pitch, Mini-Flat Package
Description:
50mA 120mV@1mA,0.25mA 80V 6V 1.1V AC,DC SOIC-4-175mil Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
VISHAY VOS628A-3T
Products Specifications
Manufacturer:
Package:
SOIC-4-175mil
Rise time:
5us
Fall time:
7us
Output Current:
50mA
Vce Saturation(VCE(sat)):
120mV@1mA,0.25mA
Operating Temperature:
-55℃~+110℃
Load Voltage:
80V
Reverse Voltage:
6V
Current transfer ratio:
200%;100%
Voltage - Forward(Vf):
1.1V
Forward Current(If):
50mA
Pd - Power Dissipation:
170mW
Number of Channels:
1
Load Type:
Phototransistor
Input type:
AC,DC
Isolation Voltage(Vrms):
3.75kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
