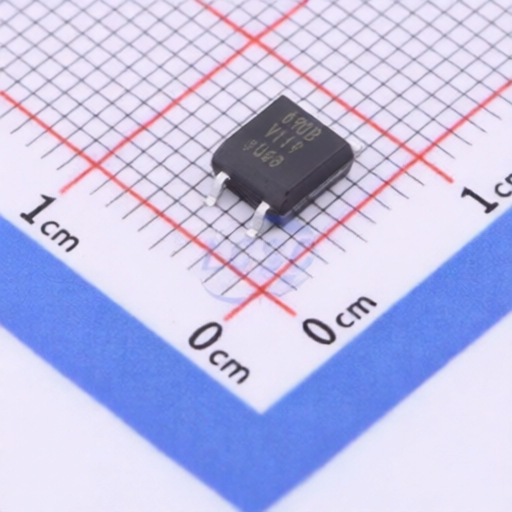

VISHAY SFH690ABT
Manufacturer:
VISHAY
Mfr. Part #:
SFH690ABT
Package:
SOP-4-2.54mm
Customer #:
Key Attributes:
Optocoupler Phototransistor Output, SOP-4, 100 mil Pitch, Mini-Flat Package
Description:
50mA 100mV@10mA,2mA 70V 6V 1.15V DC SOP-4-2.54mm Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
VISHAY SFH690ABT
Products Specifications
Manufacturer:
Package:
SOP-4-2.54mm
Rise time:
3us
Fall time:
4us
Output Current:
50mA
Vce Saturation(VCE(sat)):
100mV@10mA,2mA
Operating Temperature:
-55℃~+100℃
Load Voltage:
70V
Reverse Voltage:
6V
Current transfer ratio:
50%;300%
Voltage - Forward(Vf):
1.15V
Forward Current(If):
50mA
Pd - Power Dissipation:
-
Number of Channels:
-
Load Type:
Phototransistor
Input type:
DC
Isolation Voltage(Vrms):
3.75kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VISHAY
12606 Products
Vishay Intertechnology, Inc. is one of the world's largest manufacturers of discrete semiconductors (diodes, MOSFETs and infrared optoelectronics) and passive electronic components (resistors, inductors and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, power supplies, and medical markets. Vishay's product innovations, successful acquisition strategy and "one-stop shop" service have made it a global industry leader.
