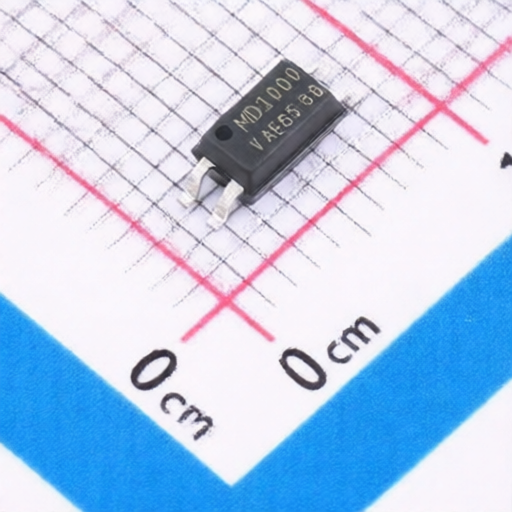

VISHAY TCMD1000
Manufacturer:
VISHAY
Mfr. Part #:
TCMD1000
Package:
SOP-4-1.27mm
Customer #:
Key Attributes:
Photodarlington Output Optocoupler, Single/Quad Channel, Half Pitch Mini-Flat Package
Description:
80mA 1V@5mA,20mA 35V 6V 1.25V DC SOP-4-1.27mm Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
VISHAY TCMD1000
Products Specifications
Manufacturer:
Package:
SOP-4-1.27mm
Output Current:
80mA
Rise time:
300us@10mA,100Ω
Fall time:
-
Vce Saturation(VCE(sat)):
1V@5mA,20mA
Operating Temperature:
-40℃~+100℃
Load Voltage:
35V
Reverse Voltage:
6V
Current transfer ratio:
600%;800%
Voltage - Forward(Vf):
1.25V
Forward Current(If):
60mA
Pd - Power Dissipation:
-
Number of Channels:
1
Load Type:
Darlington Transistor
Input type:
DC
Isolation Voltage(Vrms):
3.75kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
