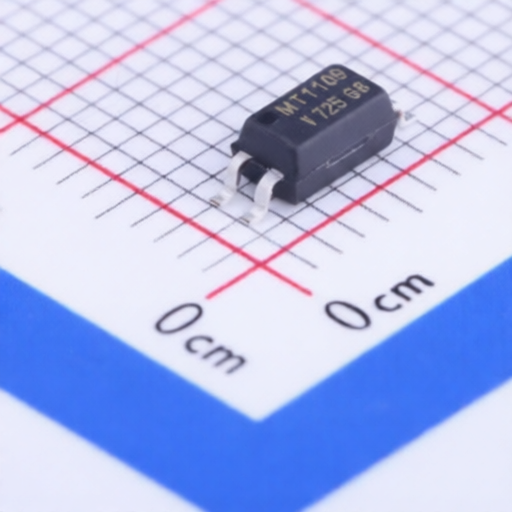

VISHAY TCMT1109

VISHAY TCMT1109

Name: VISHAY TCMT1109
Brand: VISHAY

Manufacturer: VISHAY

Mfr. Part #: TCMT1109

Package: SOP-4-1.27mm

Customer #:

Key Attributes: Optocoupler, Phototransistor Output, Single Channel, Half Pitch Mini-Flat Package

Description: 50mA 300mV@1mA,10mA 70V 6V 1.35V DC SOP-4-1.27mm Transistor, Photovoltaic Output Optoisolators RoHS

Datasheet: VISHAY TCMT1109

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Transistor, Photovoltaic Output Optoisolators

Manufacturer:

VISHAY

Package:

SOP-4-1.27mm

Fall time:

7us

Rise time:

5.5us@2mA,100Ω

Output Current:

50mA

Vce Saturation(VCE(sat)):

300mV@1mA,10mA

Operating Temperature:

-40℃~+100℃

Load Voltage:

70V

Reverse Voltage:

Current transfer ratio:

200%;400%

Voltage - Forward(Vf):

1.35V

Forward Current(If):

60mA

Number of Channels:

Load Type:

Phototransistor

Input type:

Isolation Voltage(Vrms):

3.75kV

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	3000
Sales Unit	Piece
