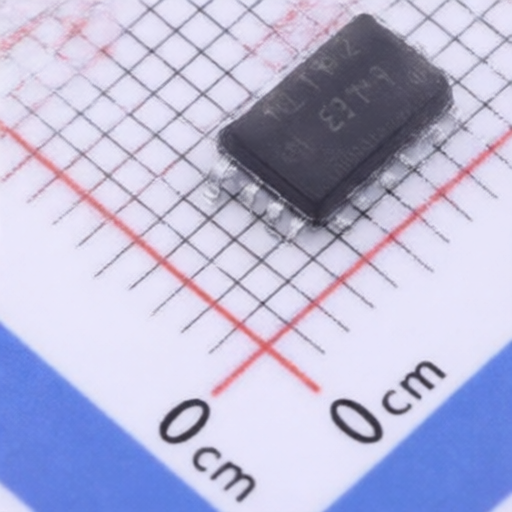

VISHAY TCLT1002

VISHAY TCLT1002

Name: VISHAY TCLT1002
Brand: VISHAY

Manufacturer: VISHAY

Mfr. Part #: TCLT1002

Package: SOP-4

Customer #:

Key Attributes: Optocoupler, Phototransistor Output, SOP-4L, Long Mini-Flat Package

Description: 50mA 300mV@10mA,1mA 70V 6V 1.25V DC SOP-4 Transistor, Photovoltaic Output Optoisolators RoHS

Datasheet: VISHAY TCLT1002

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Transistor, Photovoltaic Output Optoisolators

Manufacturer:

VISHAY

Package:

SOP-4

Fall time:

4.7us

Rise time:

3us

Output Current:

50mA

Vce Saturation(VCE(sat)):

300mV@10mA,1mA

Operating Temperature:

-55℃~+100℃

Load Voltage:

70V

Reverse Voltage:

Current transfer ratio:

125%;63%

Voltage - Forward(Vf):

1.25V

Forward Current(If):

60mA

Pd - Power Dissipation:

250mW

Number of Channels:

Load Type:

Phototransistor

Input type:

Isolation Voltage(Vrms):

5kV

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	3000
Sales Unit	Piece
