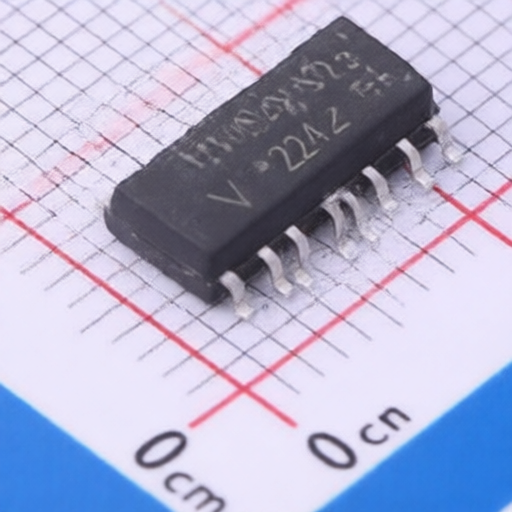

VISHAY TCMT4100

VISHAY TCMT4100

Name: VISHAY TCMT4100
Brand: VISHAY

Manufacturer: VISHAY

Mfr. Part #: TCMT4100

Package: SOP-16-4.4mm

Customer #:

Key Attributes: Optocoupler, Phototransistor Output, Quad Channel, Half Pitch Mini-Flat Package

Description: 50mA 300mV@10mA,1mA 70V 6V 1.35V DC SOP-16-4.4mm Transistor, Photovoltaic Output Optoisolators RoHS

Datasheet: VISHAY TCMT4100

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Transistor, Photovoltaic Output Optoisolators

Manufacturer:

VISHAY

Package:

SOP-16-4.4mm

Fall time:

7us

Rise time:

5.5us

Output Current:

50mA

Vce Saturation(VCE(sat)):

300mV@10mA,1mA

Operating Temperature:

-40℃~+100℃

Load Voltage:

70V

Reverse Voltage:

Current transfer ratio:

600%;50%

Voltage - Forward(Vf):

1.35V

Forward Current(If):

60mA

Pd - Power Dissipation:

Number of Channels:

Load Type:

Phototransistor

Input type:

Isolation Voltage(Vrms):

3.75kV

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2000
Sales Unit	Piece

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

VISHAY

12606 Products

International Brand

Vishay Intertechnology, Inc. is one of the world's largest manufacturers of discrete semiconductors (diodes, MOSFETs and infrared optoelectronics) and passive electronic components (resistors, inductors and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, power supplies, and medical markets. Vishay's product innovations, successful acquisition strategy and "one-stop shop" service have made it a global industry leader.
