VBsemi Elec NDS8435A-VB
Manufacturer:
VBsemi Elec
Mfr. Part #:
NDS8435A-VB
Package:
SO-8
Customer #:
Description:

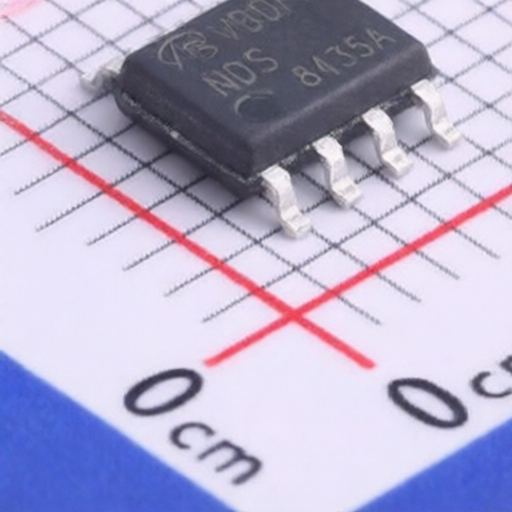

P-Channel 30V 9A 2.5W Surface Mount SO-8
Datasheet:
VBsemi Elec NDS8435A-VB
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
9A
Operating Temperature -:
-55℃~+150℃
RDS(on):
18mΩ@10V;24mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
-
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
145pF
Number:
1 P-Channel
Output Capacitance(Coss):
180pF
Input Capacitance(Ciss):
1.495nF
Pd - Power Dissipation:
2.5W
Gate Charge(Qg):
13nC@4.5V;25nC@10V
