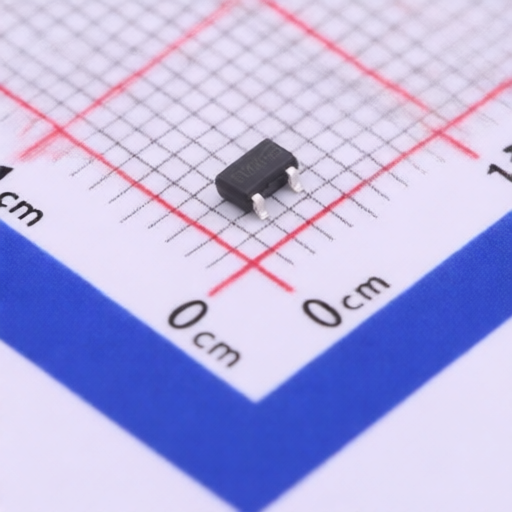

VBsemi Elec AM2394NE-VB
Manufacturer:
VBsemi Elec
Mfr. Part #:
AM2394NE-VB
Package:
SOT-23(TO-236)
Customer #:
Description:
N-Channel 100V 2A 2.5W Surface Mount SOT-23(TO-236)
Datasheet:
VBsemi Elec AM2394NE-VB
Products Specifications
Manufacturer:
Package:
SOT-23(TO-236)
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
240mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.8V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
13pF
Number:
1 N-channel
Output Capacitance(Coss):
22pF
Input Capacitance(Ciss):
190pF
Pd - Power Dissipation:
2.5W
Gate Charge(Qg):
5.2nC@10V
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VBsemi Elec
192 Products
VBsemi Elec was established in 2012 and is a company based in Taiwan, China, focusing on the research, development, production, and sales of MOSFET power semiconductor components. It has obtained multiple product invention patents and has been certified with ISO14001, QS9000, and ISO9001. The company primarily produces MOSFET power semiconductor components.
