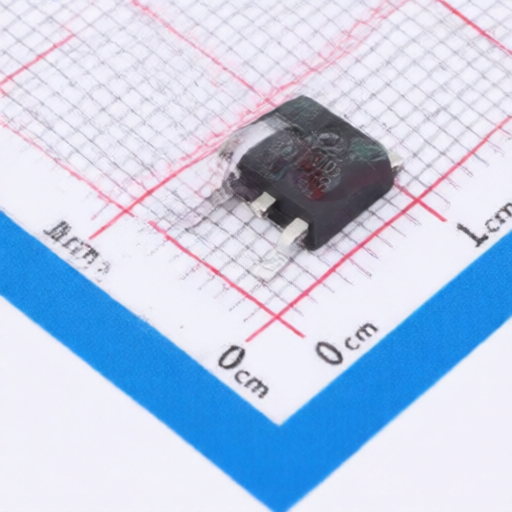

VBsemi Elec IRFR5505TRPBF-VB
Manufacturer:
VBsemi Elec
Mfr. Part #:
IRFR5505TRPBF-VB
Package:
TO-252
Customer #:
Description:
P-Channel 60V 35A 2.3W Surface Mount TO-252
Datasheet:
VBsemi Elec IRFR5505TRPBF-VB
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
35A
Operating Temperature -:
-55℃~+150℃
RDS(on):
46mΩ@10V;58mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
90pF
Number:
1 P-Channel
Output Capacitance(Coss):
130pF
Input Capacitance(Ciss):
1.9nF
Pd - Power Dissipation:
2.3W
Gate Charge(Qg):
26nC@10V
