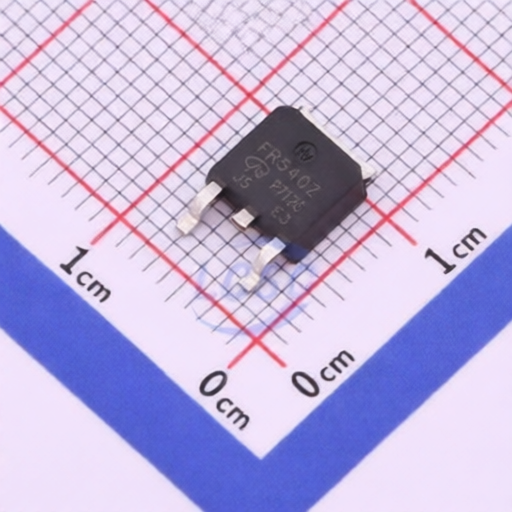

VBsemi Elec IRFR540ZPBF-VB
Manufacturer:
VBsemi Elec
Mfr. Part #:
IRFR540ZPBF-VB
Package:
TO-252
Customer #:
Description:
N-Channel 100V 40A 107W Surface Mount TO-252
Datasheet:
VBsemi Elec IRFR540ZPBF-VB
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
40A
Operating Temperature -:
-55℃~+175℃
RDS(on):
30mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
120pF
Number:
1 N-channel
Output Capacitance(Coss):
290pF
Input Capacitance(Ciss):
2.6nF
Pd - Power Dissipation:
107W
Gate Charge(Qg):
35nC@10V
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VBsemi Elec
192 Products
VBsemi Elec was established in 2012 and is a company based in Taiwan, China, focusing on the research, development, production, and sales of MOSFET power semiconductor components. It has obtained multiple product invention patents and has been certified with ISO14001, QS9000, and ISO9001. The company primarily produces MOSFET power semiconductor components.
