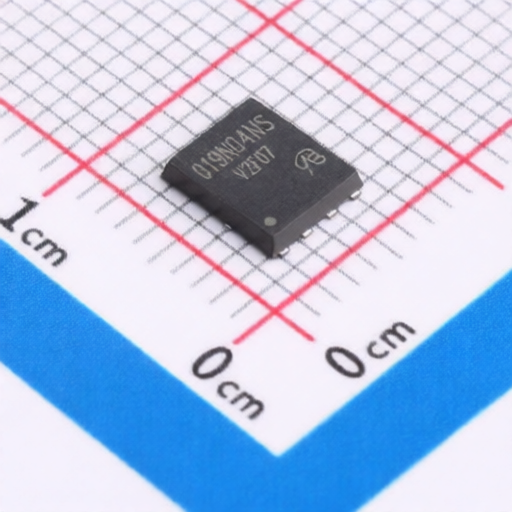

VBsemi Elec BSC019N04NS G-VB
Manufacturer:
VBsemi Elec
Asian Brands
Mfr. Part #:
BSC019N04NS G-VB
Package:
DFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 40V 120A DFN5x6-8
Description:
N-Channel 40V 120A 83W Surface Mount DFN5x6-8
Datasheet:
VBsemi Elec BSC019N04NS G-VB
Products Specifications
Manufacturer:
Package:
DFN5x6-8
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
120A
Operating Temperature -:
-55℃~+150℃
RDS(on):
2.5mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
275pF
Number:
1 N-channel
Output Capacitance(Coss):
610pF
Input Capacitance(Ciss):
4.75nF
Pd - Power Dissipation:
83W
Gate Charge(Qg):
78nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VBsemi Elec
192 Products
VBsemi Elec was established in 2012 and is a company based in Taiwan, China, focusing on the research, development, production, and sales of MOSFET power semiconductor components. It has obtained multiple product invention patents and has been certified with ISO14001, QS9000, and ISO9001. The company primarily produces MOSFET power semiconductor components.
