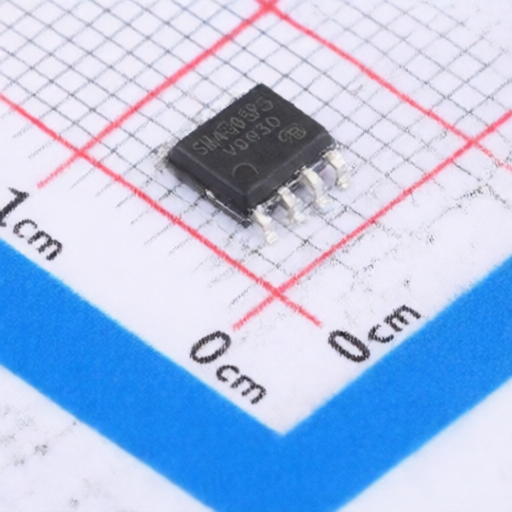

VBsemi Elec SM4305PSKC-TRG-VB
Manufacturer:
VBsemi Elec
Mfr. Part #:
SM4305PSKC-TRG-VB
Package:
SO-8
Customer #:
Description:
P-Channel 30V 11.6A 2.5W Surface Mount SO-8
Datasheet:
VBsemi Elec SM4305PSKC-TRG-VB
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
11.6A
Operating Temperature -:
-55℃~+150℃
RDS(on):
11mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
325pF
Number:
1 P-Channel
Output Capacitance(Coss):
380pF
Input Capacitance(Ciss):
1.96nF
Pd - Power Dissipation:
2.5W
Gate Charge(Qg):
43nC@10V
