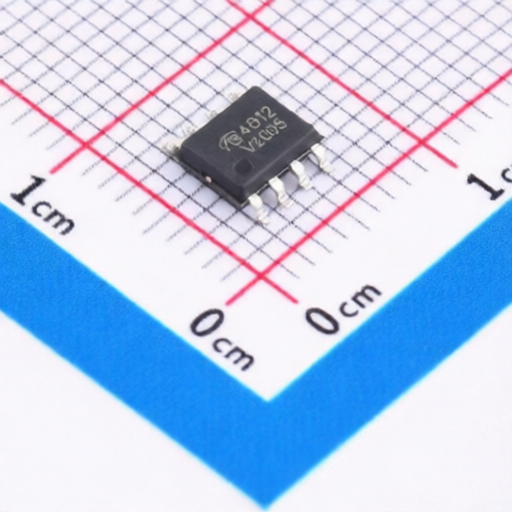

VBsemi Elec AO4812-VB
Manufacturer:
VBsemi Elec
Asian Brands
Mfr. Part #:
AO4812-VB
Package:
SO-8
Customer #:
Key Attributes:
MOSFET N-CH ARR 30V 6.8A SO-8
Description:
N-Channel Array 30V 6.8A 2.7W Surface Mount SO-8
Datasheet:
VBsemi Elec AO4812-VB
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
6.8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
22mΩ@10V;26mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA;2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
55pF
Number:
2 N-Channel
Output Capacitance(Coss):
117pF
Input Capacitance(Ciss):
586pF
Pd - Power Dissipation:
2.7W
Gate Charge(Qg):
15nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VBsemi Elec
192 Products
VBsemi Elec was established in 2012 and is a company based in Taiwan, China, focusing on the research, development, production, and sales of MOSFET power semiconductor components. It has obtained multiple product invention patents and has been certified with ISO14001, QS9000, and ISO9001. The company primarily produces MOSFET power semiconductor components.
