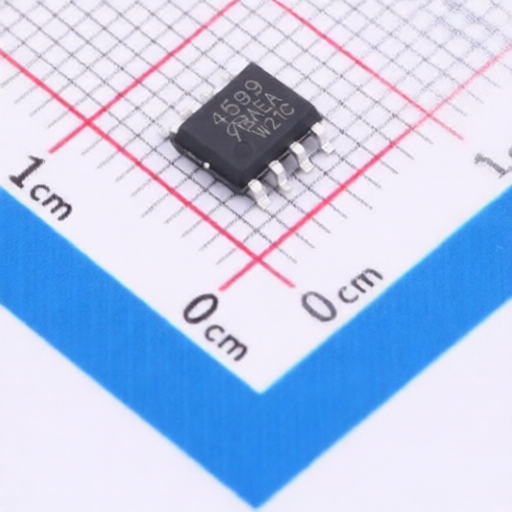

VBsemi Elec SI4599DY-T1-GE3-VB
Manufacturer:
VBsemi Elec
Asian Brands
Mfr. Part #:
SI4599DY-T1-GE3-VB
Package:
SO-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 60V 5.3A SO-8
Description:
N-Channel+P-Channel Array 60V 5.3A 2W Surface Mount SO-8
Datasheet:
VBsemi Elec SI4599DY-T1-GE3-VB
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
5.3A
Operating Temperature -:
-55℃~+150℃
RDS(on):
26mΩ@10V;55mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1V
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
40pF@15V
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
75pF;95pF
Input Capacitance(Ciss):
665pF@15V
Pd - Power Dissipation:
2W
Gate Charge(Qg):
6nC@4.5V;8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
