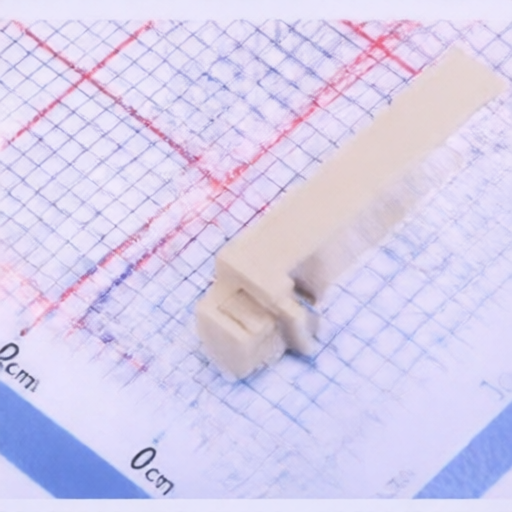

TXGA FWF12504-S11B24W5M
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF12504-S11B24W5M
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 11POS 1.25mm
Description:
Connector Header 11 position 1.25mm Pitch 1A Surface Mount, Right Angle -40℃~+85℃
Datasheet:
TXGA FWF12504-S11B24W5M
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5.3mm
Pins Structure:
1x11P
Reference Series:
-
Contact Material:
PA9T;Brass
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount, Right Angle
Pitch:
1.25mm
Number of PINs:
11P
Operating Temperature:
-40℃~+85℃
Number of PINs Per Row:
11
Contact Plating:
Tin
Current Rating:
1A
Voltage Rating (Max):
125V
Z-Height of the Board:
3.6mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
