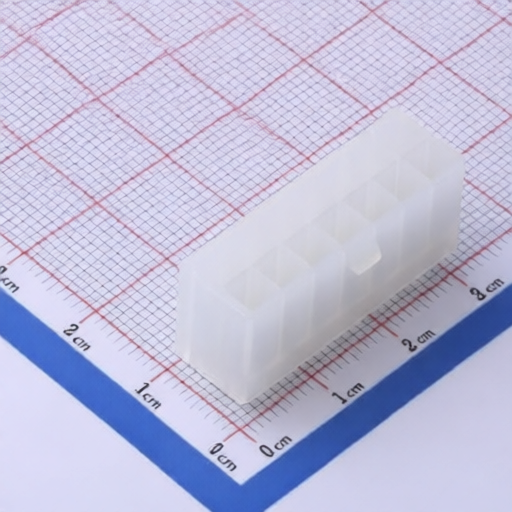

TXGA FWF42002-D14S22TK
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF42002-D14S22TK
Package:
Through Hole,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH 14POS 4.2mm
Description:
Connector Header 14 position 4.2mm Pitch 7A Through Hole -40℃~+105℃
Datasheet:
TXGA FWF42002-D14S22TK
Products Specifications
Manufacturer:
Package:
Through Hole,P=4.2mm
Y-Width of Bottom Edge on Board:
10.2mm
Pins Structure:
2x7P
Reference Series:
-
Contact Material:
Brass;PA66
Flame Retardant Rating:
UL94V-0
Number of Rows:
2
Mounting Type:
Through Hole
Pitch:
4.2mm
Number of PINs:
14P
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
7
Contact Plating:
Tin
Current Rating:
7A
Voltage Rating (Max):
600V
Z-Height of the Board:
12.9mm
Row Spacing:
4.2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
TXGA
541 Products
TXGA Industrial Electronics (S.Z.) Co., Ltd is one of the leading suppliers of connector solutions, providing customized connectors and technology-oriented services with wide applicability.
Our partners are in automotive, military, new energy, aviation and other areas with high-level safety and quality standards.
We believe that the long-term development of TXGA depends on both deep insights into the future and down-to-earth actions.
We have been rewarded the title of "National Hight-tech Enterprise", and obtained a range of patents and certificates with domestic and international standards.
