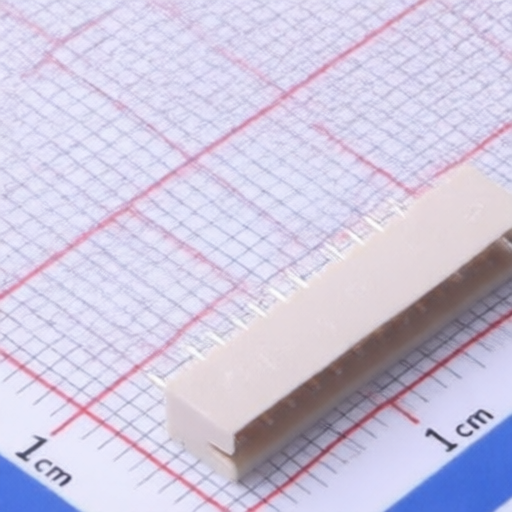

TXGA FWF15001-S14S26W5B
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF15001-S14S26W5B
Package:
Through Hole,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER TH 14POS 1.5mm
Description:
Connector Header 14 position 1.5mm Pitch 1A Through Hole -25℃~+85℃
Datasheet:
TXGA FWF15001-S14S26W5B
Products Specifications
Manufacturer:
Package:
Through Hole,P=1.5mm
Y-Width of Bottom Edge on Board:
3.7mm
Pins Structure:
1x14P
Reference Series:
-
Contact Material:
Brass;PA46
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Through Hole
Pitch:
1.5mm
Number of PINs:
14P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
14
Contact Plating:
Tin
Current Rating:
1A
Voltage Rating (Max):
50V
Z-Height of the Board:
4.5mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
