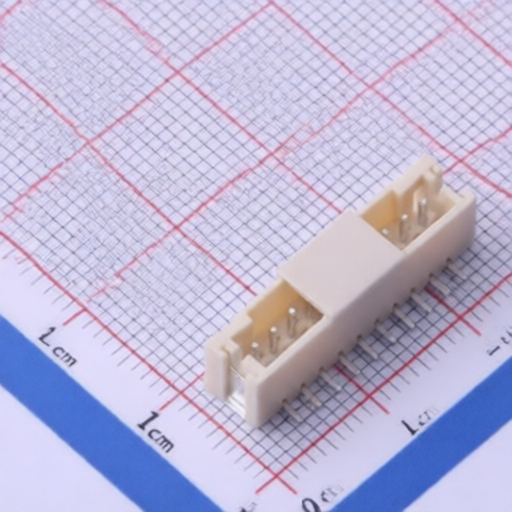

TXGA FWF20003-S10S24W5M
Manufacturer:
TXGA
Asian Brands
Mfr. Part #:
FWF20003-S10S24W5M
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD 10POS 2mm
Description:
Connector Header 10 position 2mm Pitch 2A Surface Mount,Vertical -25℃~+85℃
Datasheet:
TXGA FWF20003-S10S24W5M
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
6.1mm
Pins Structure:
1x10P
Reference Series:
-
Contact Material:
PA9T;Brass
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Surface Mount,Vertical
Pitch:
2mm
Number of PINs:
10P
Operating Temperature:
-25℃~+85℃
Number of PINs Per Row:
10
Contact Plating:
Tin
Current Rating:
2A
Voltage Rating (Max):
100V
Z-Height of the Board:
5.5mm
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
