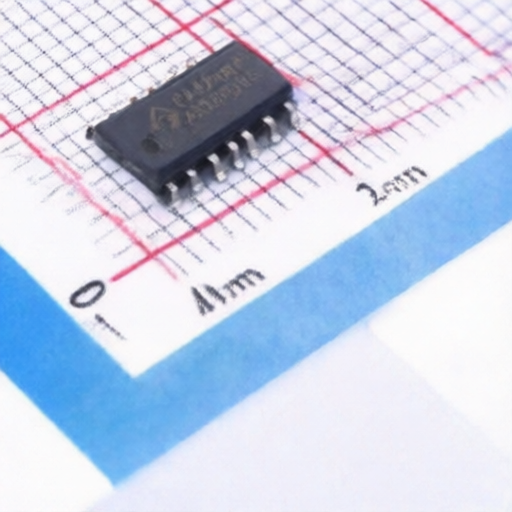

Sungine CD4071BP
Manufacturer:
Sungine
Asian Brands
Mfr. Part #:
CD4071BP
Package:
SOP-14
Customer #:
Key Attributes:
4-to-2 input OR gate integrated circuit
Description:
OR Gate IC 4 Channel SOP-14
Datasheet:
Sungine CD4071BP
Products Specifications
Manufacturer:
Package:
SOP-14
Series:
CD4
Input Logic Level - High:
3.5V;7V;11V
Operating Temperature:
-10℃~+70℃
Input Logic Level - Low:
1.5V;3V;4V
Output Logic Level - Low:
50mV
Output Logic Level - High:
4.95V~5V;9.95V~10V;14.95V~15V
Propagation Delay:
30ns@15V,50pF
Voltage - Supply:
3V~18V
Current - Output High(IOH):
4mA
Number of Channels:
4
Current - Output Low(IOL):
4mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
