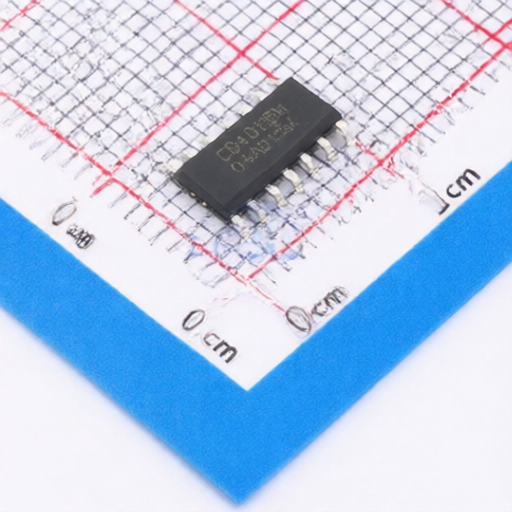

TDSEMIC CD4011BM-TD
Manufacturer:
TDSEMIC
Asian Brands
Mfr. Part #:
CD4011BM-TD
Package:
SOP-14
Customer #:
Key Attributes:
Quad 2-Input NAND Gates
Description:
NAND Gate IC 4 Channel SOP-14
Datasheet:
TDSEMIC CD4011BM-TD
Products Specifications
Manufacturer:
Package:
SOP-14
Series:
CD4
Operating Temperature:
-40℃~+85℃
Input Logic Level - Low:
1.5V;3V;4V
Input Logic Level - High:
3.5V;7V;11V
Output Logic Level - Low:
50mV
Output Logic Level - High:
4.95V;9.95V;14.95V
Quiescent Current(Iq):
30uA
Propagation Delay:
35ns@15V,50pF
Voltage - Supply:
3V~15V
Current - Output High(IOH):
3.6mA
Number of Channels:
4;2
Current - Output Low(IOL):
3.6mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
