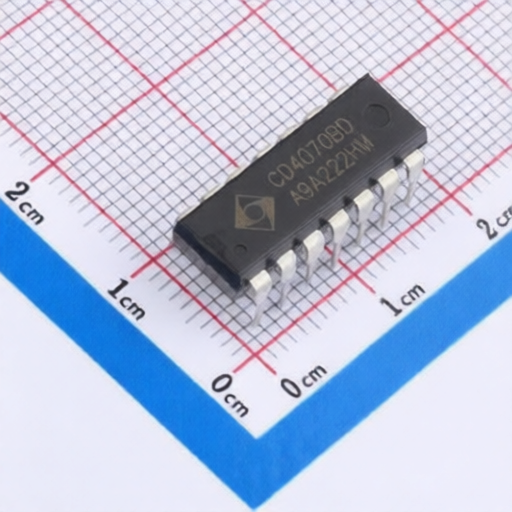

Sungine CD4070BD
Manufacturer:
Sungine
Asian Brands
Mfr. Part #:
CD4070BD
Package:
DIP-14
Customer #:
Key Attributes:
4-to-2 Input Exclusive OR Gate IC
Description:
XOR Gate IC 4 Channel DIP-14
Datasheet:
Sungine CD4070BD
Products Specifications
Manufacturer:
Package:
DIP-14
Series:
CD4
Input Logic Level - High:
3.5V;7V;11V
Operating Temperature:
-10℃~+70℃
Input Logic Level - Low:
1.5V;3V;4V
Output Logic Level - Low:
50mV
Output Logic Level - High:
4.95V;9.95V;14.95V
Propagation Delay:
40ns@15V,50pF
Quiescent Current(Iq):
4uA
Voltage - Supply:
3V~18V
Current - Output High(IOH):
6.8mA
Number of Channels:
4
Current - Output Low(IOL):
6.8mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
