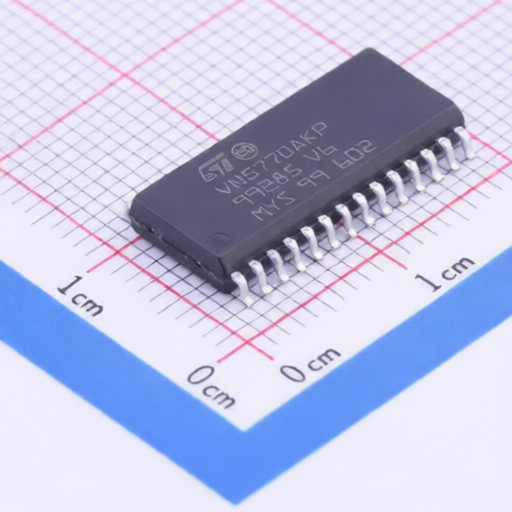

ST VN5770AKPTR-E

Name: ST VN5770AKPTR-E
Brand: ST

Manufacturer: ST

Mfr. Part #: VN5770AKPTR-E

Package: SOIC-28-300mil

Customer #:

Key Attributes: Quad smart power solid state relay for complete H-bridge configurations

Description: SOIC-28-300mil Full Half-Bridge (H Bridge) Drivers RoHS

Datasheet: ST VN5770AKPTR-E

Products Specifications

Category:

Integrated Circuits (ICs)/Power Management (PMIC)/Full Half-Bridge (H Bridge) Drivers

Manufacturer:

Package:

SOIC-28-300mil

Operating Temperature:

-40℃~+150℃

Quiescent Current:

2uA

RDS(on):

160mΩ

Input Voltage:

4.5V~36V

Peak Current:

12A

Output Current:

8.5A

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece
